The
T830 is available for amateur construction or for your boatbuilder.
LOA
8.3
metre
Beam
3.0
metre
Draft
2.25
metre
Sailing
Weight
1400
kg
Crew
Weight
510kg
(6 people)
Complete
boat
890kg
SA UP
51.0
sq. m
SA Down
141.4
sq. m
3
metre beam on deck, narrow on the waterline - powerful upwind,
awesome downwind, NEW canting keel
option!

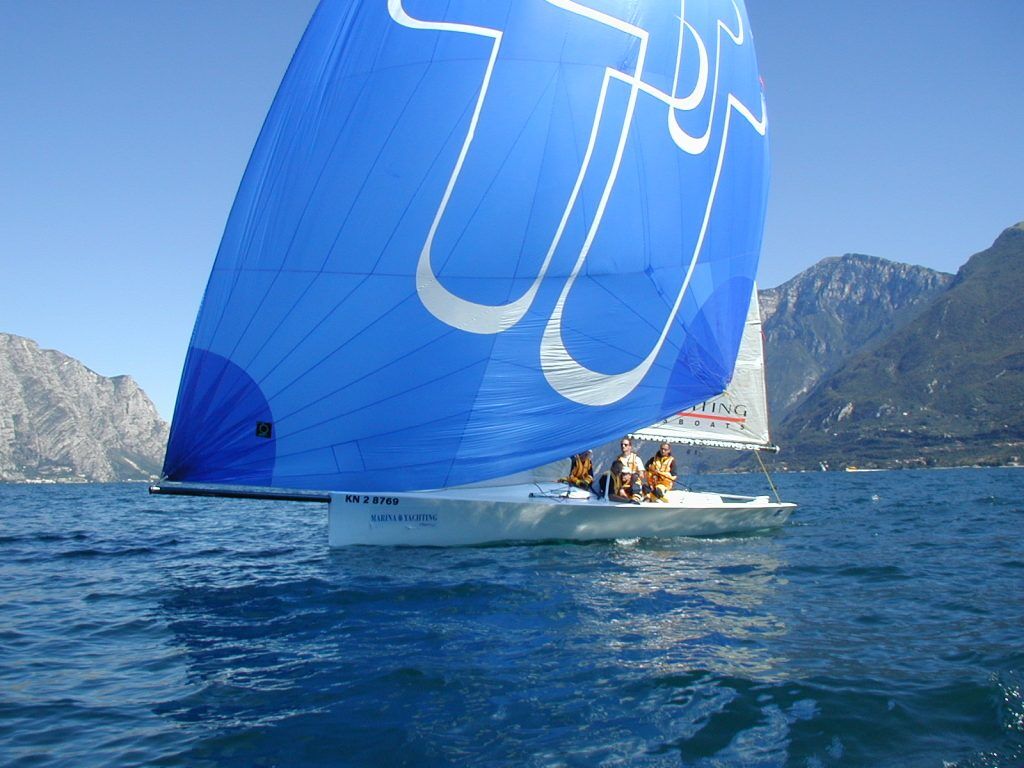

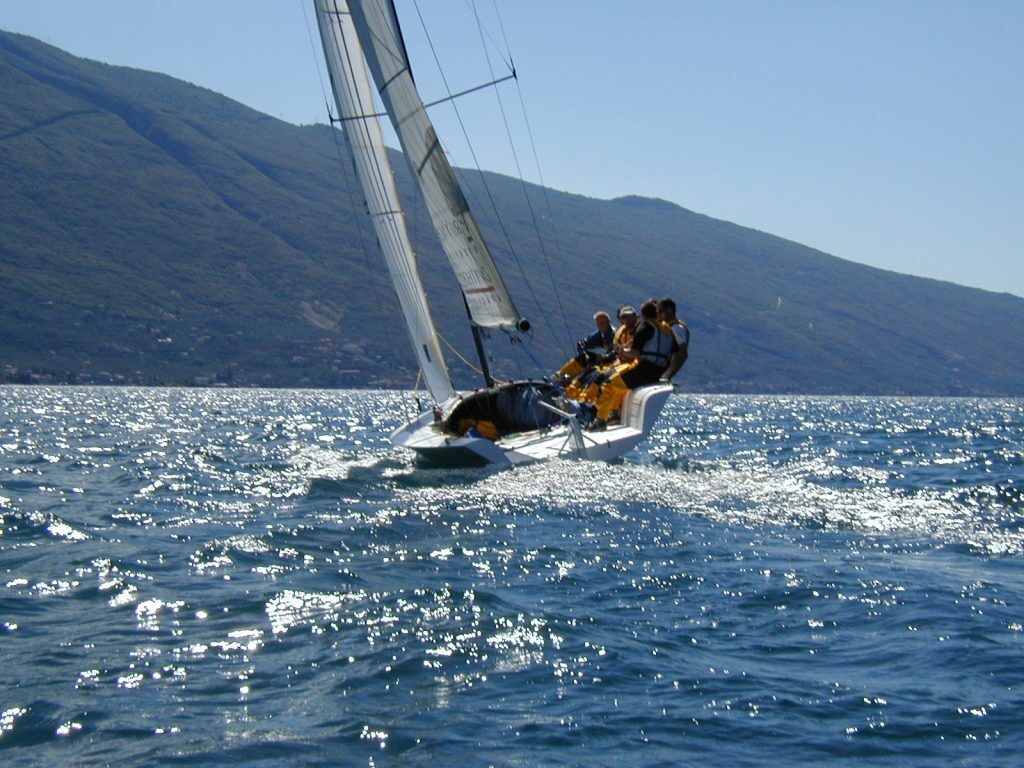

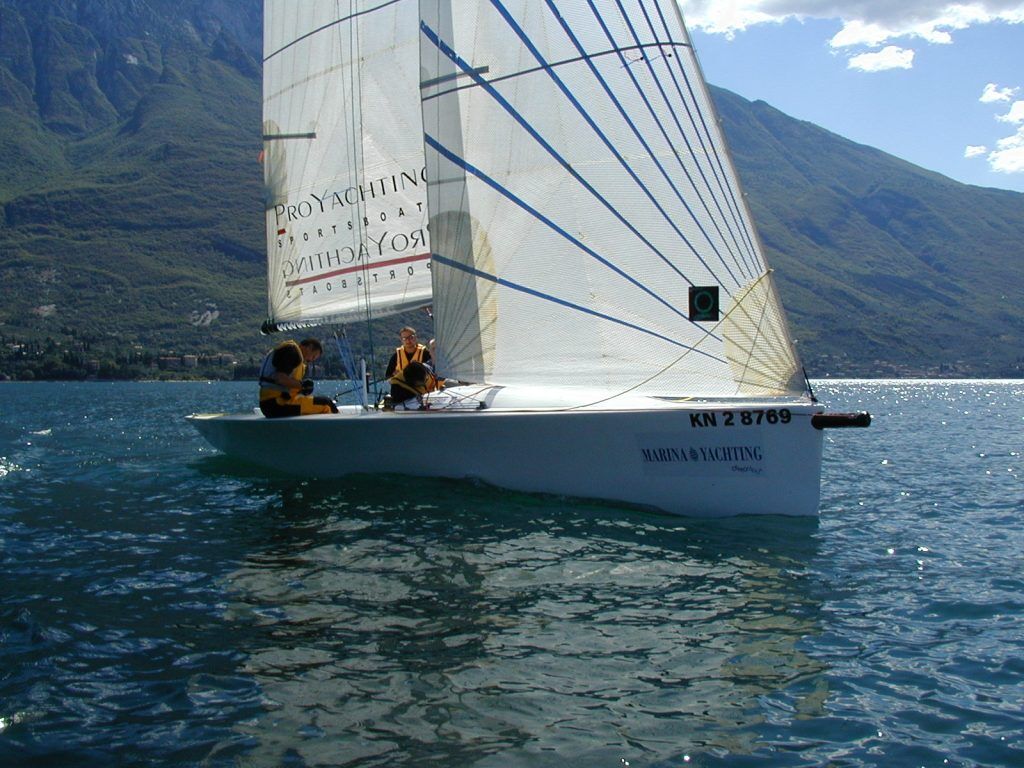

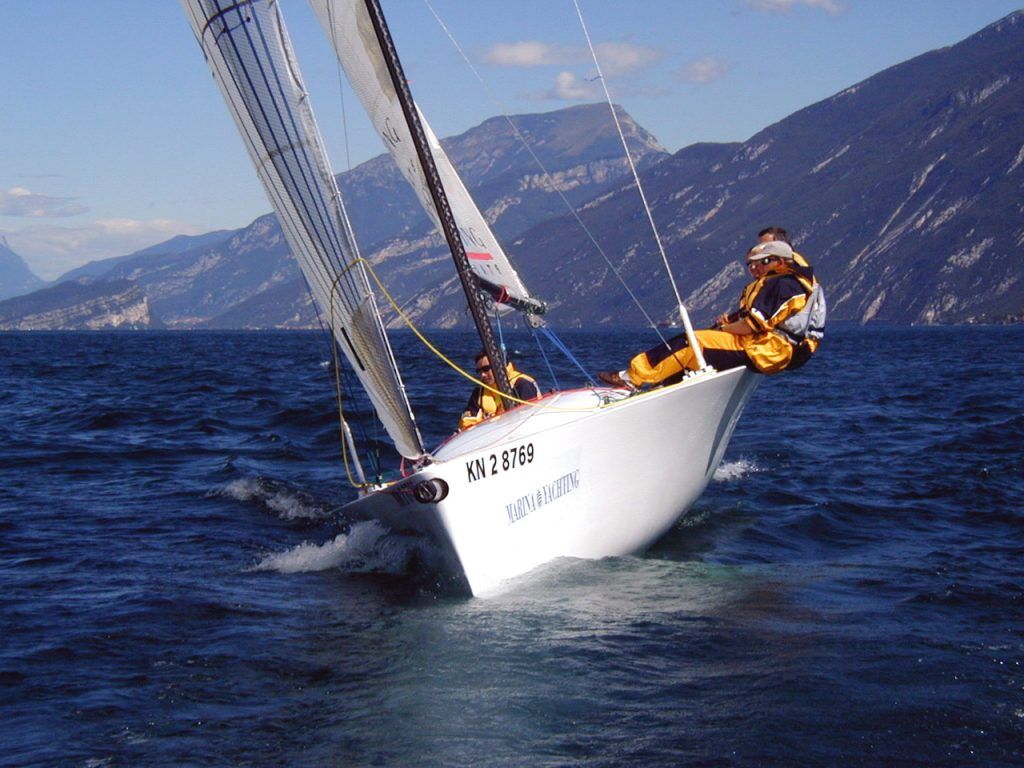

With the masthead or fractional spinnaker this is a no compromise
racer - it can take you at a pace you've never been before.
The large carbon fibre rig dismantles into 2 pieces for
ease of trailering.

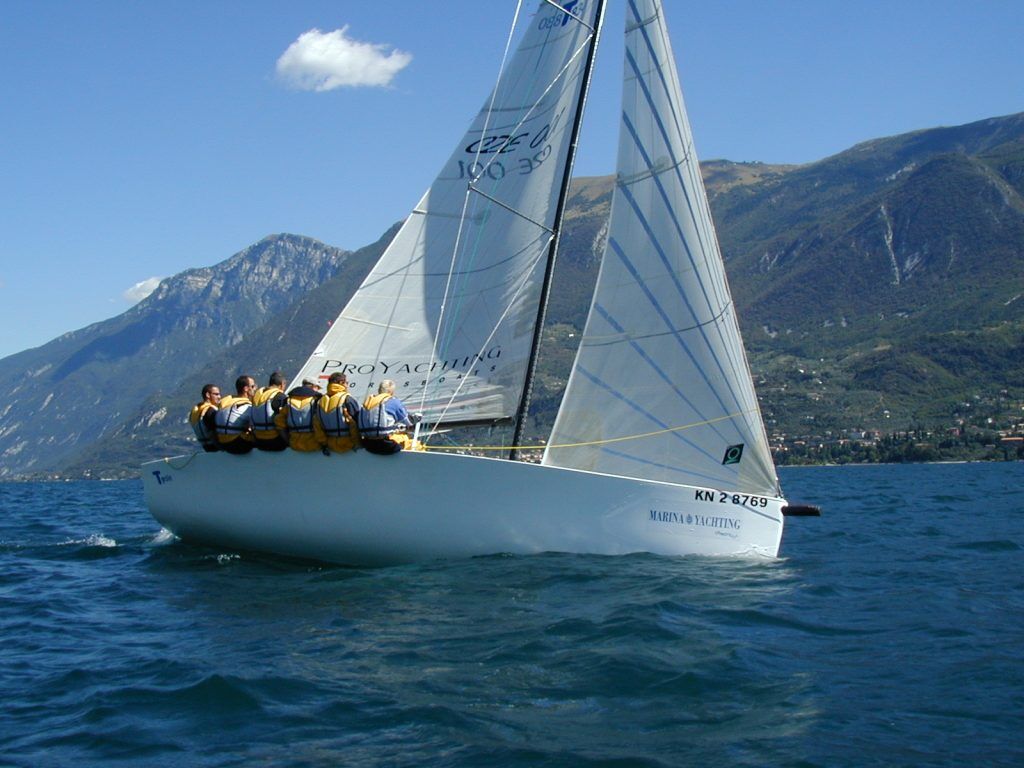

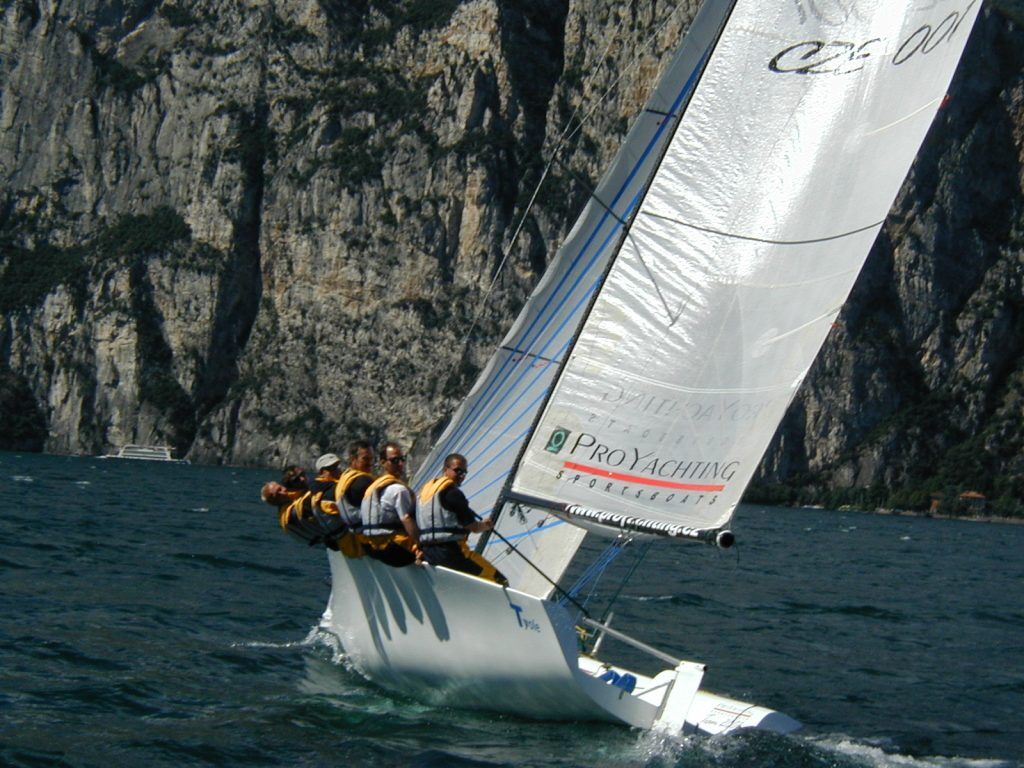

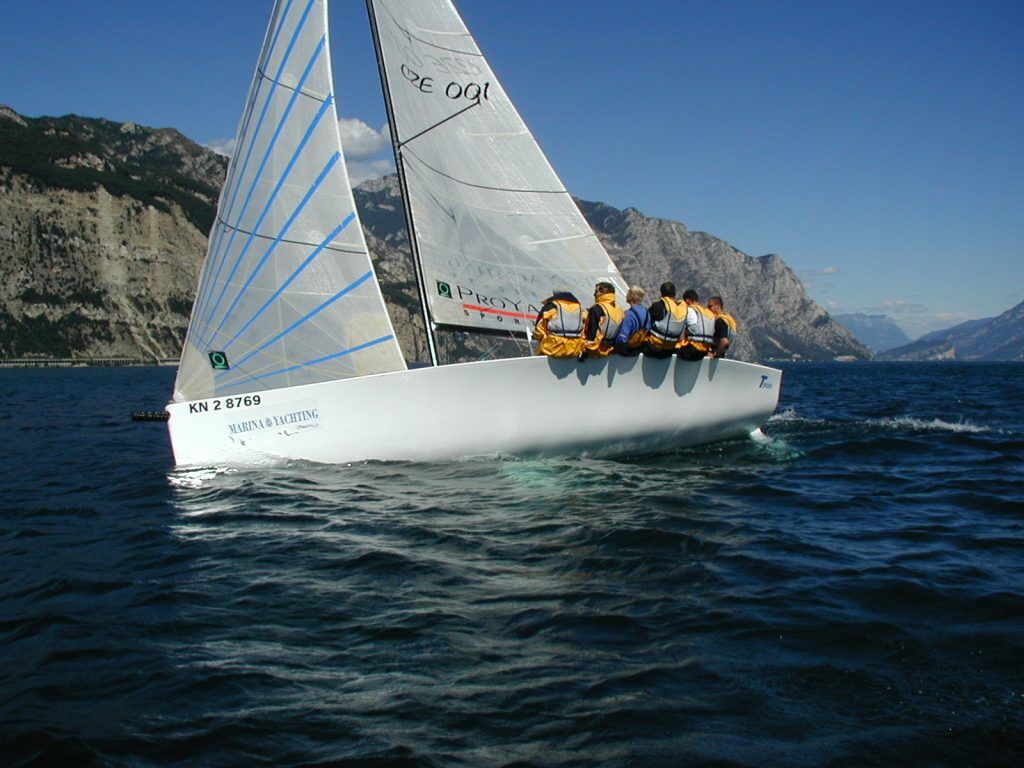

The T830 has excelled in Europe where it has won many races.
Its light weather performance is second to none.
The boat can be trailers on the special cantering trailer
within the normal road limits.

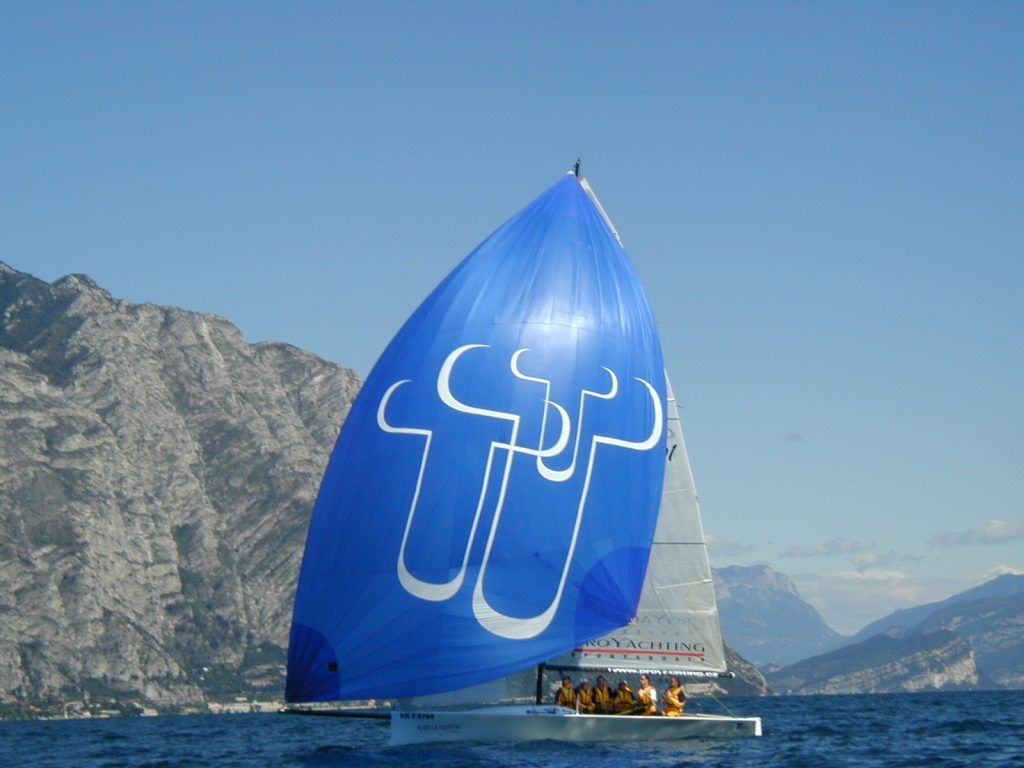

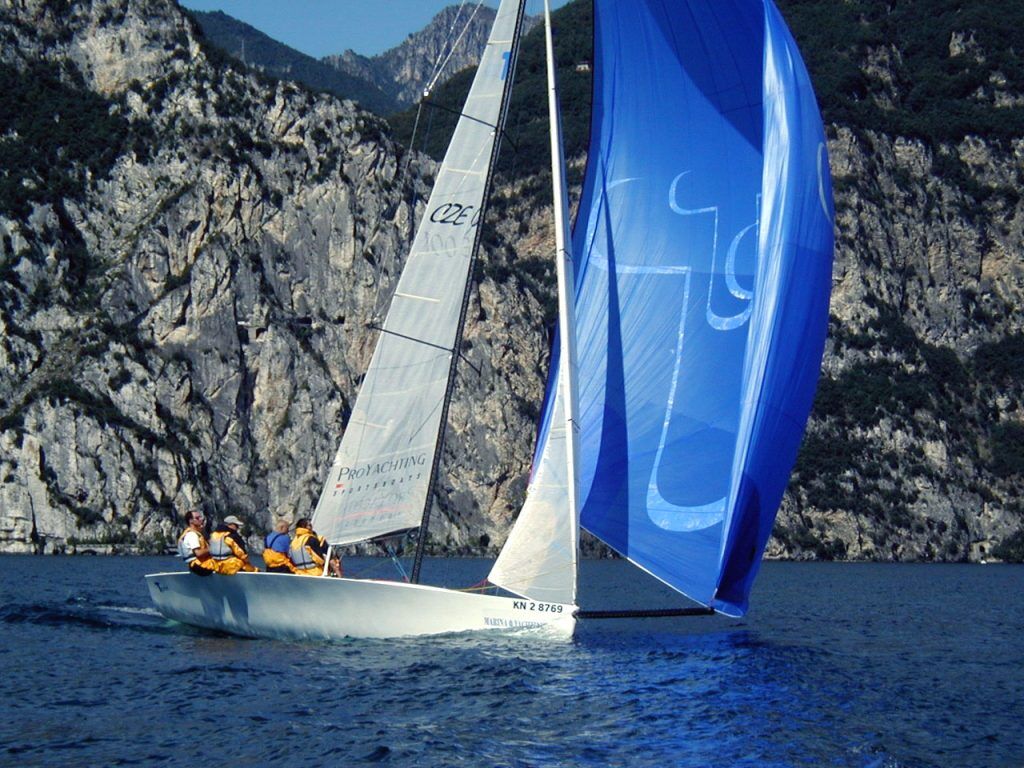

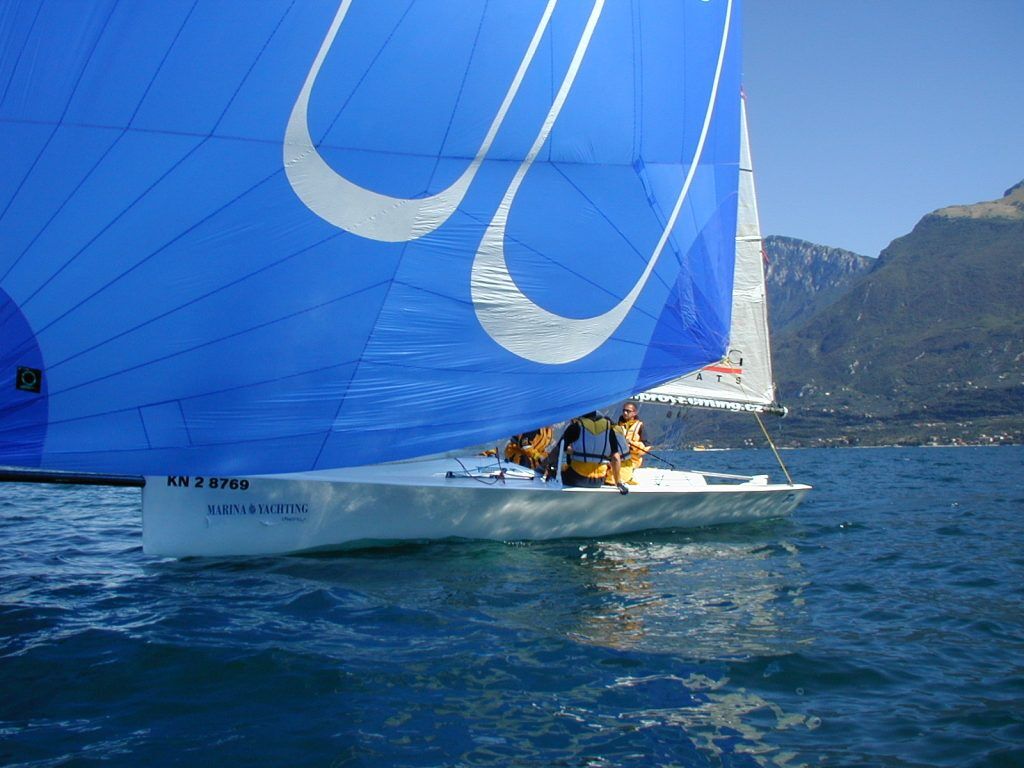

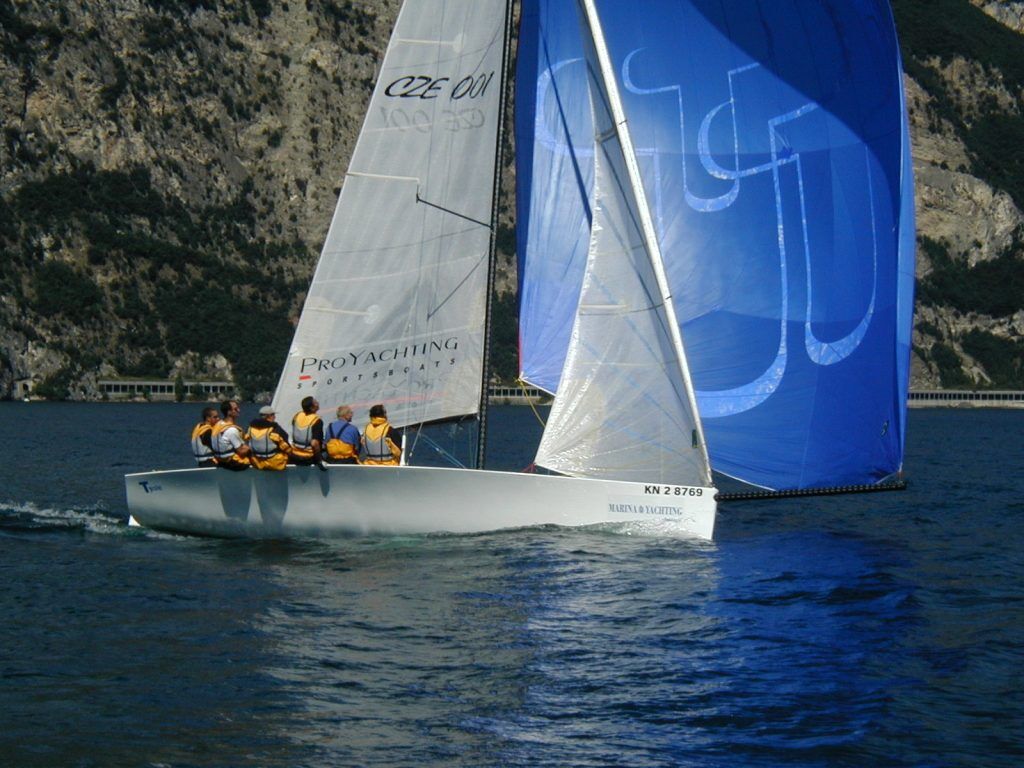

The rotating carbon prod assists in sailing low downwind
angles with asymmetric spinnaker.

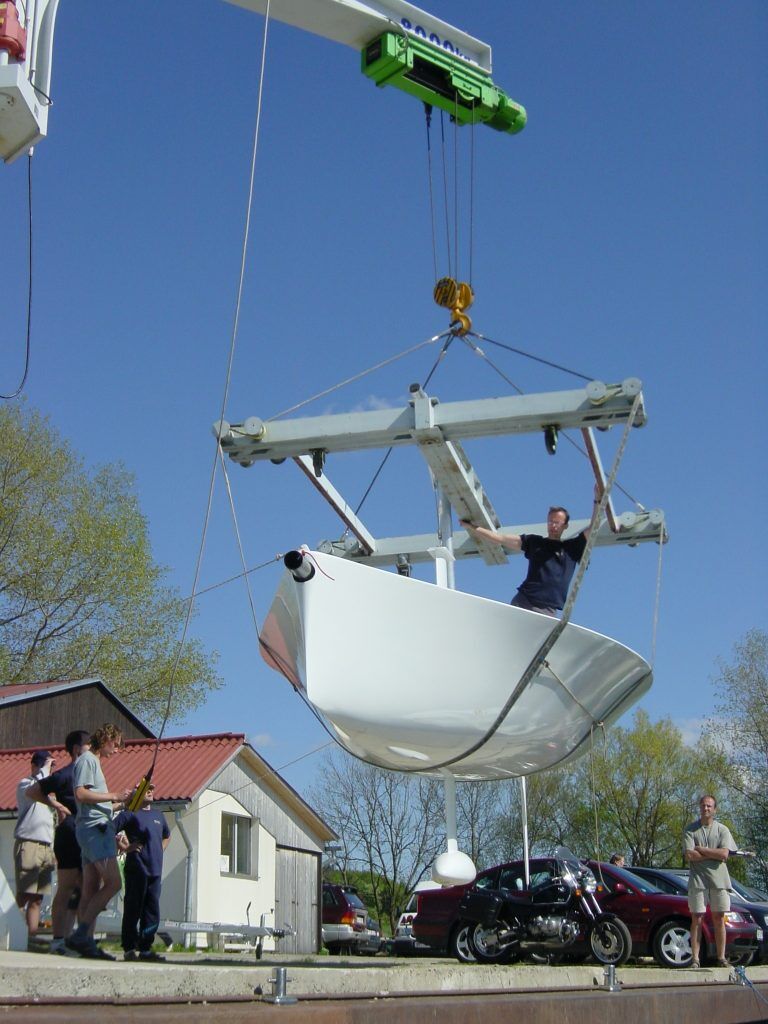

The light weight of the yacht means towing is easy with

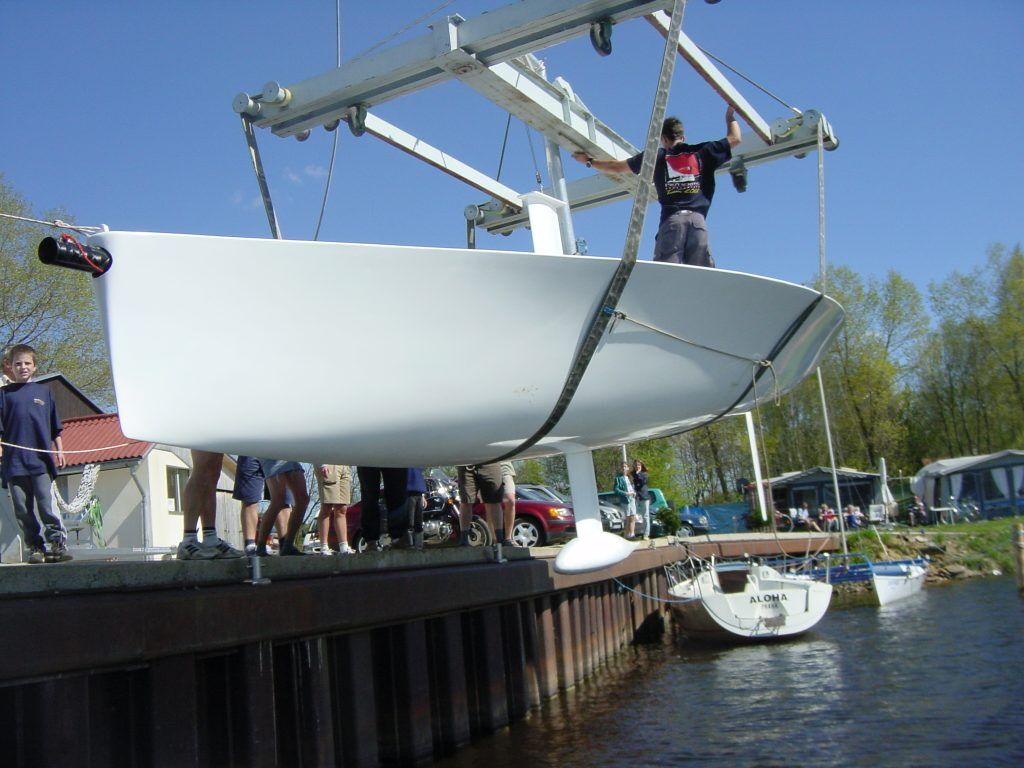

a family car. Launching can be from ramp or crane using
the keel mounted lift point.
Drawings are also available for the home builder, some components
can be supplied to help the build process.
Design
The T830 is designed as a one design with the added advantage
of being a superb PHRF racer often beating the 40 footers
around the course.
The designers have utilises the latest VPP software to help
create a boat that is very fast and stable upwind yet exhilarating
downwind.

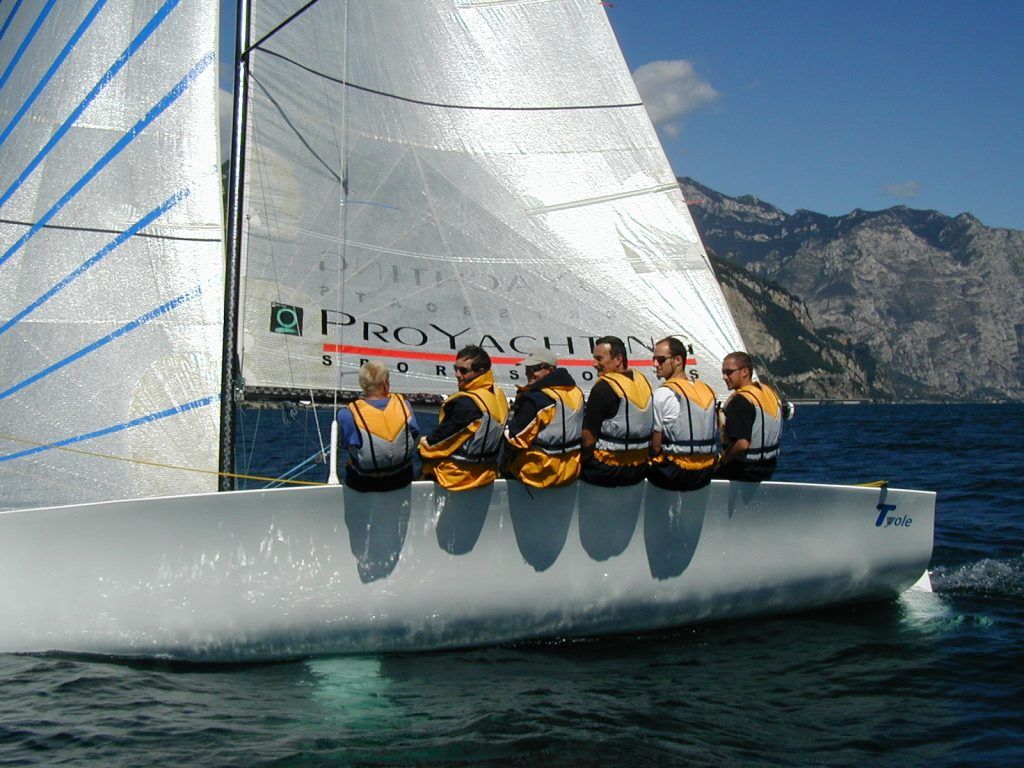

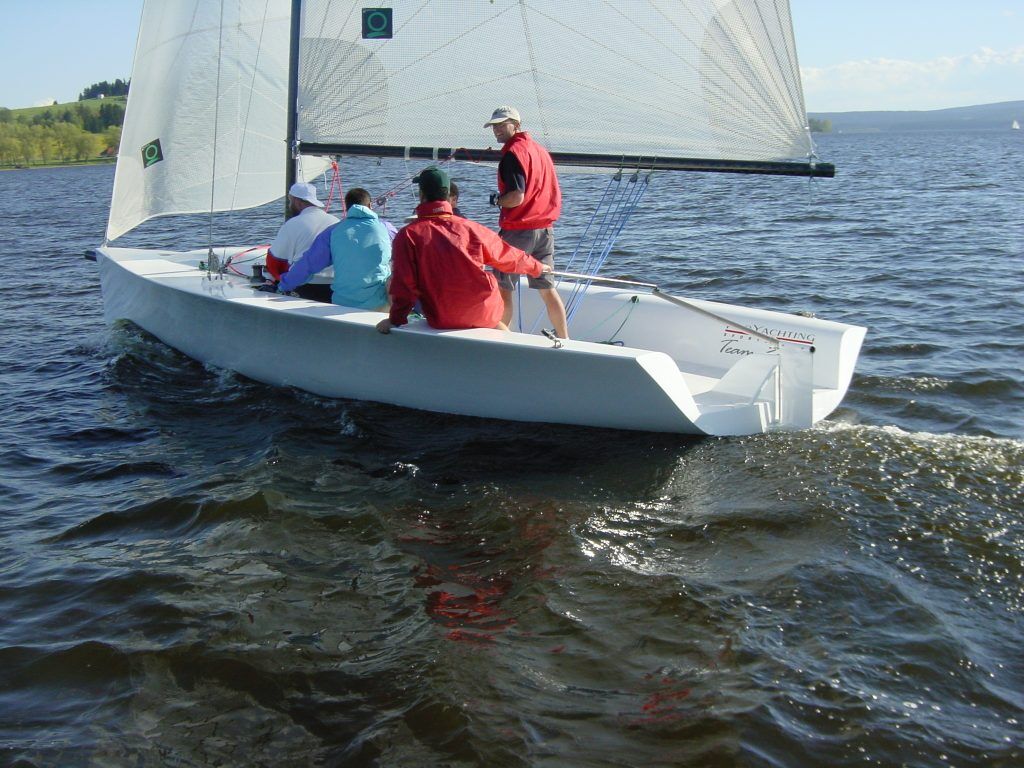

It features wide and comfortable side decks and a large
cockpit, all of the sailing controls are simple and easy
to use.

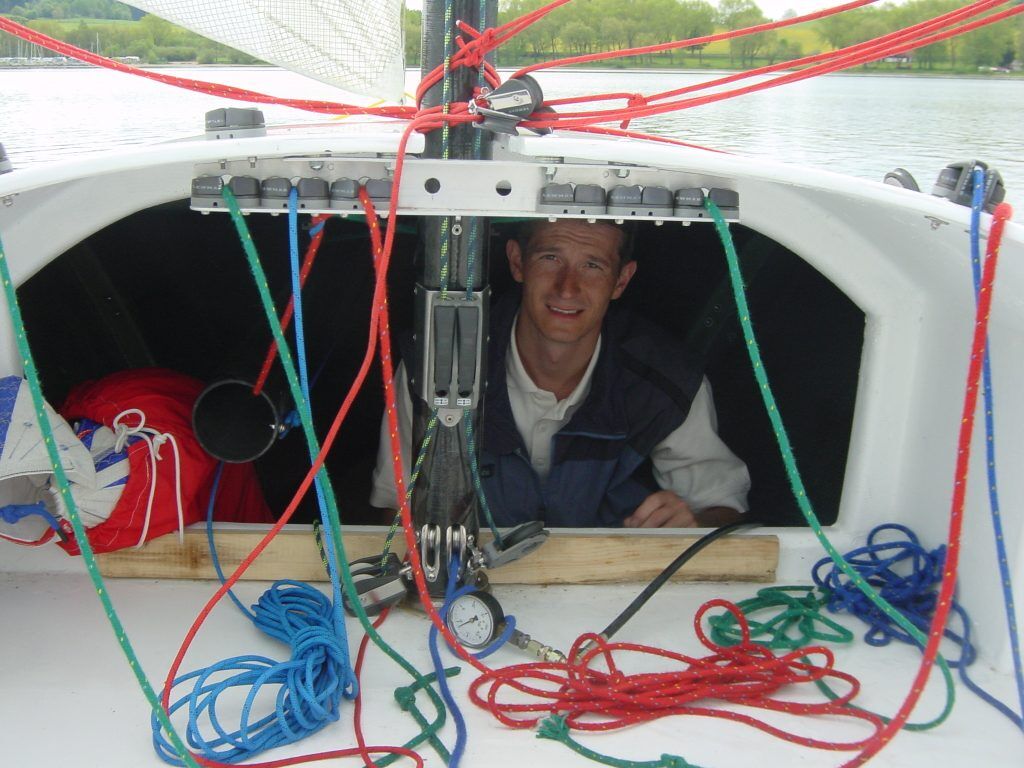

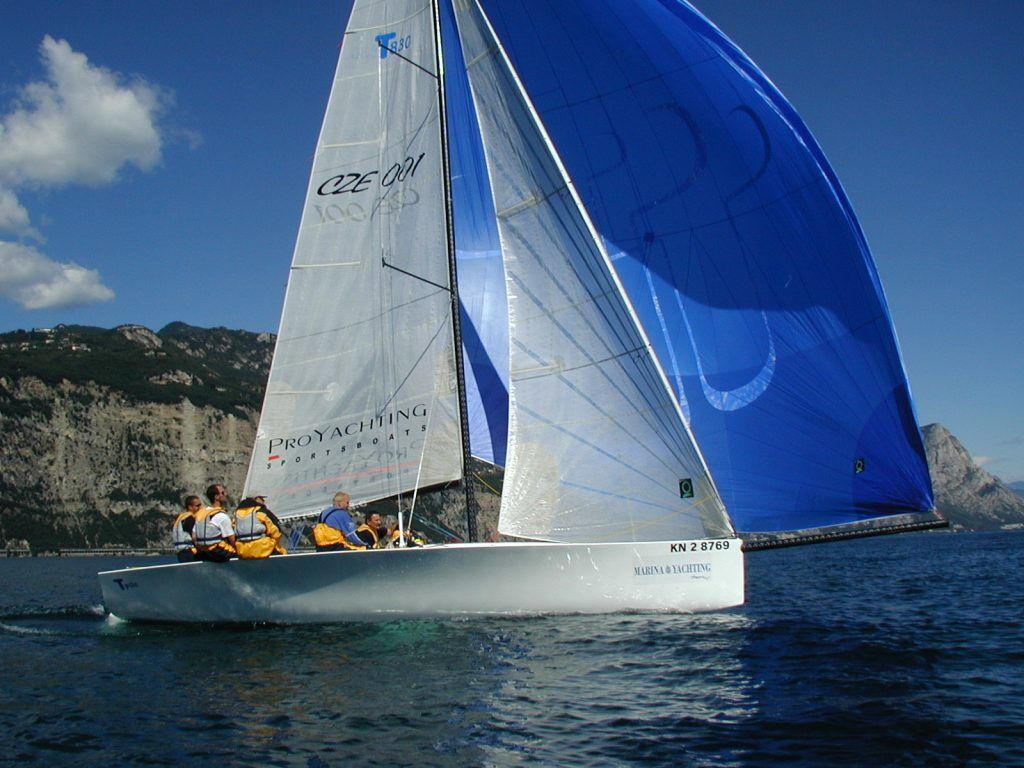

The rig features no permanent backstay with rig tension
adjusted from an optional hydraulic ram under the mast.
The carbon mast is designed with the mainsail roach to bend
in the puffs and allow the mainsail to exhaust.

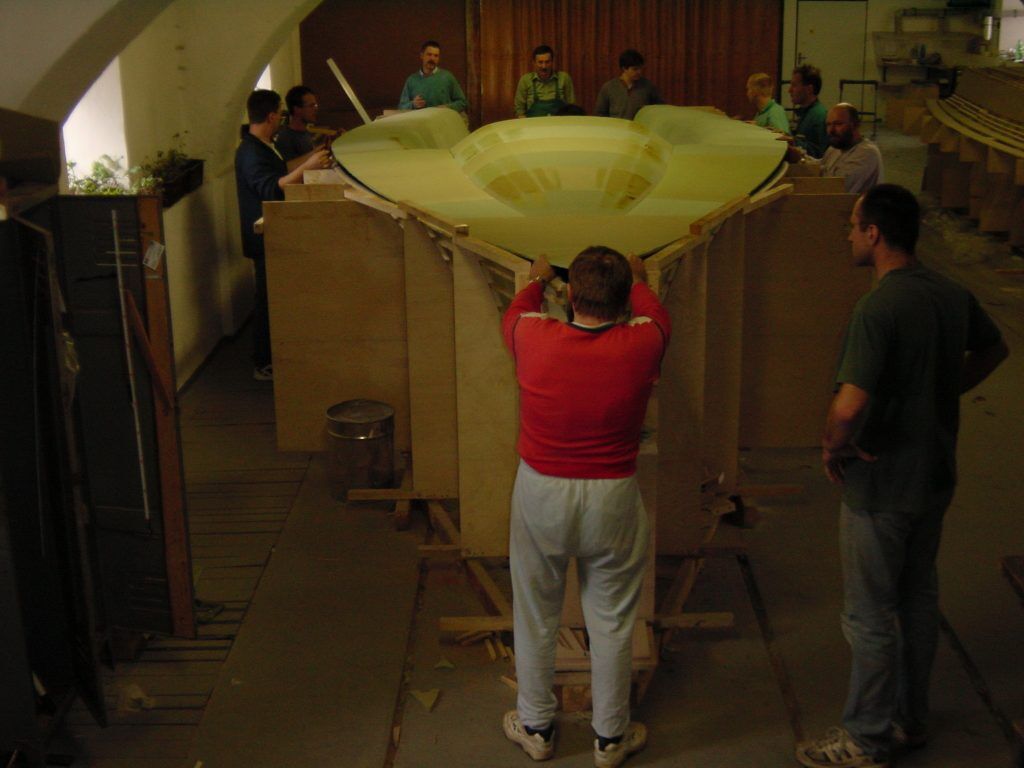

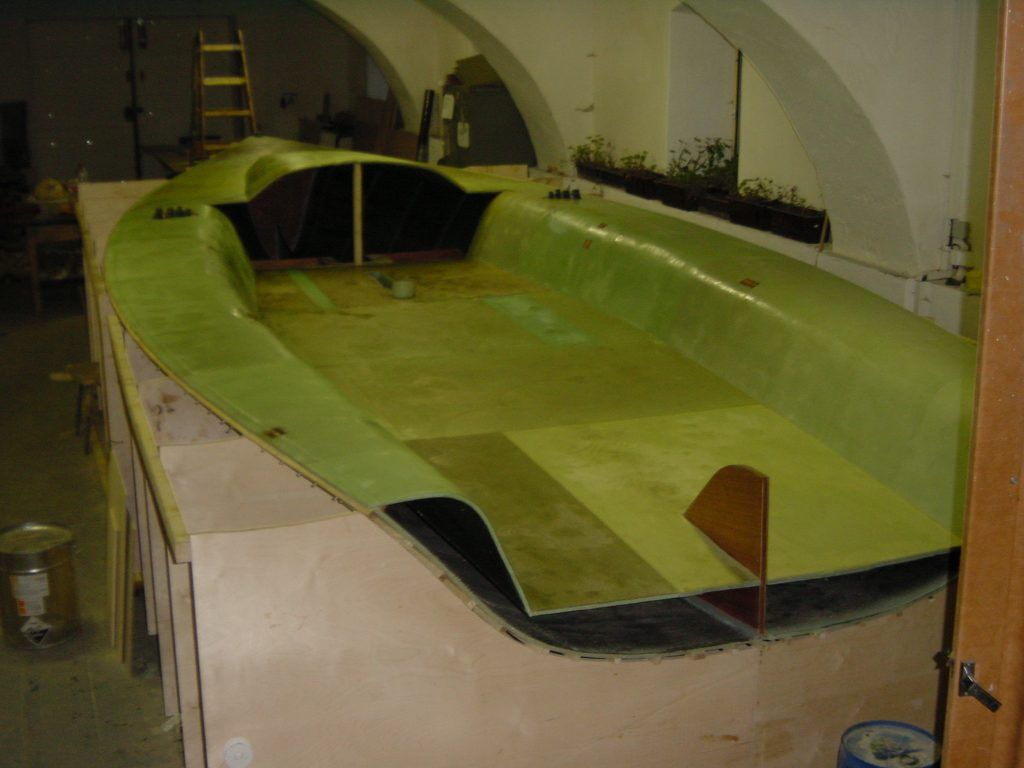

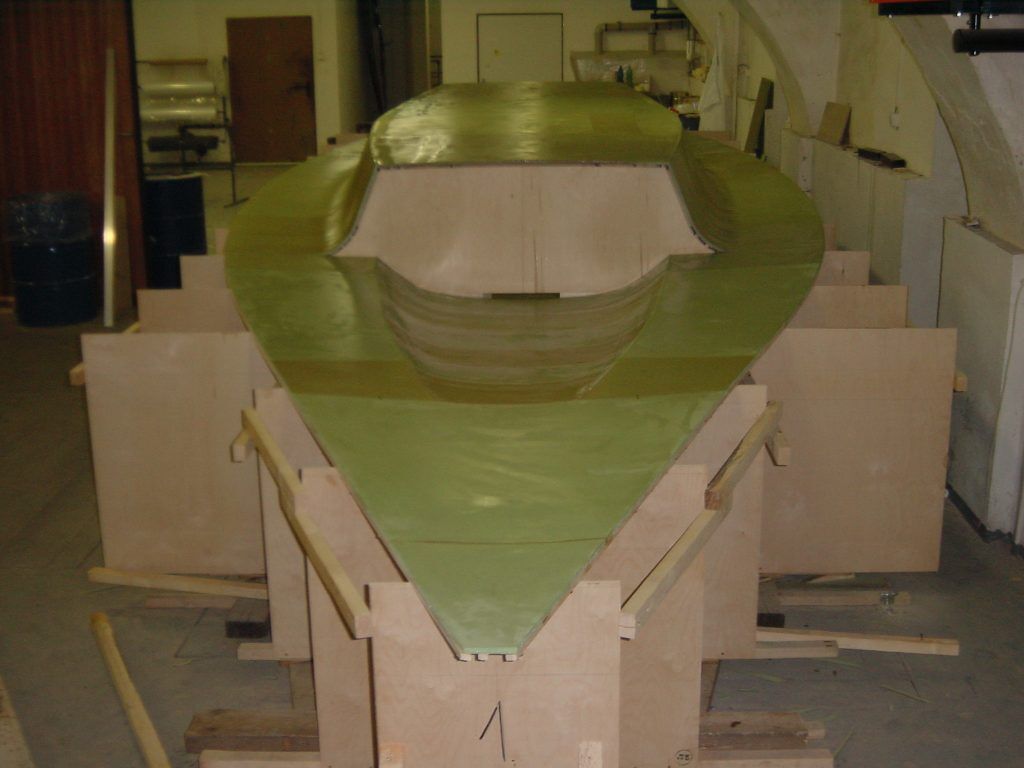

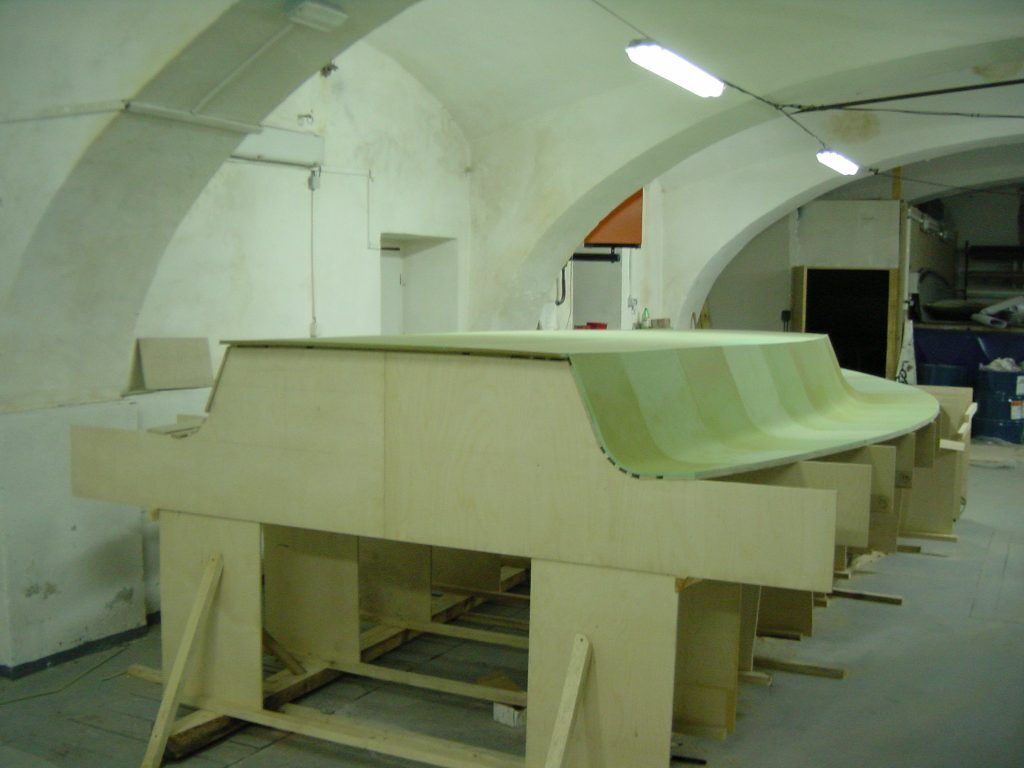

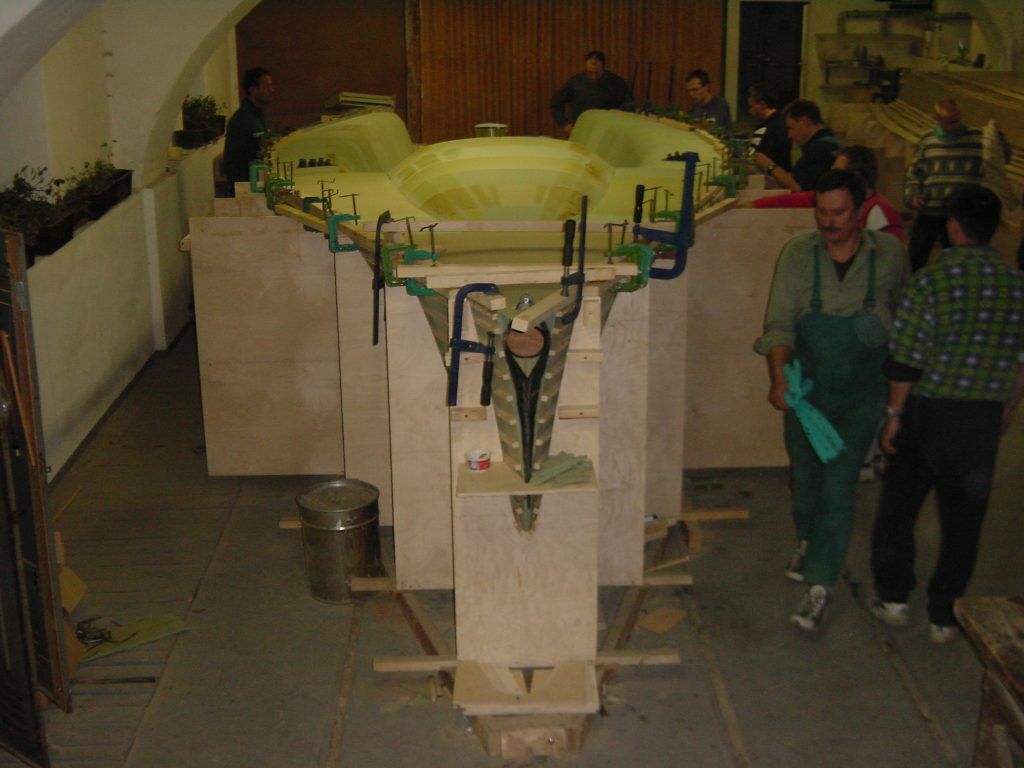

Construction
The T830 is constructed using carbon/eglass fiber and epoxy
resin with a foam core. Carbon fiber is used for additional
stiffening where appropriate.

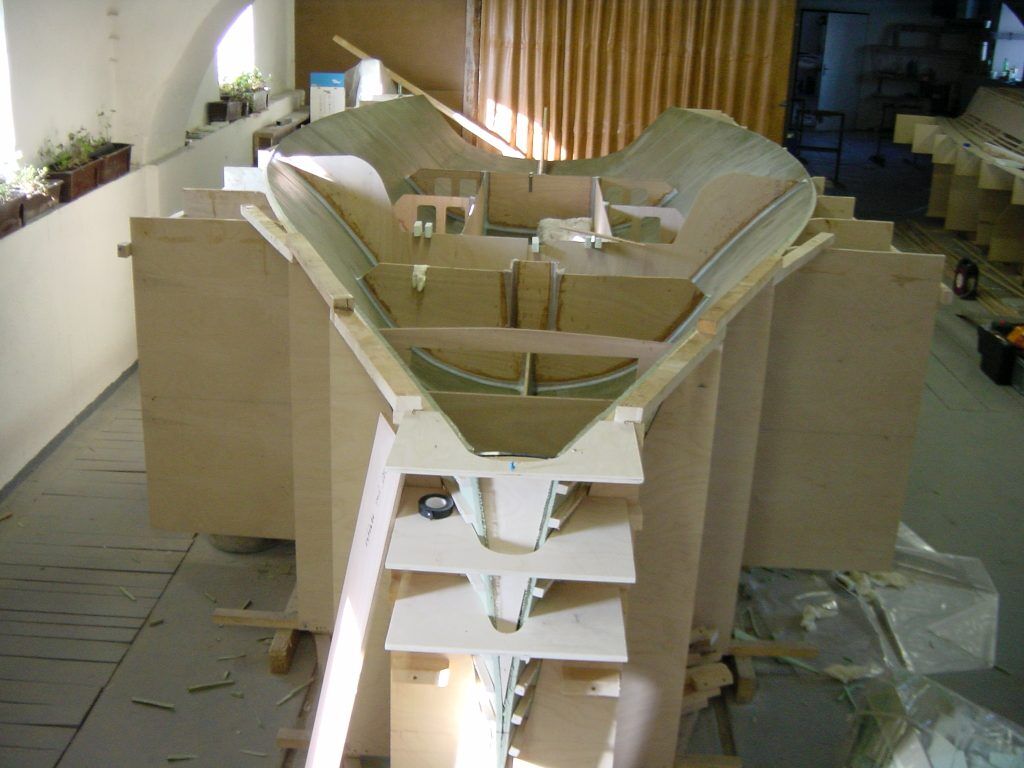

Internals are used with a simple grid system of foam ringframes.
The keel and rudder are constructed using carbon fiber stiffening.
Specification Rig – The mast and boom is carbon fiber.
Rigging is Dyform with aluminium spreaders.
The bow prod is articulating and carbon fiber.
Deck Fitout – Full Harken/Spinlock fitout with
winch option.
Sails – Mainsail, light and medium jib with
a heavy air option.
Spinnakers are asymmetric with one masthead and one fractional.
Code 0 is also available.

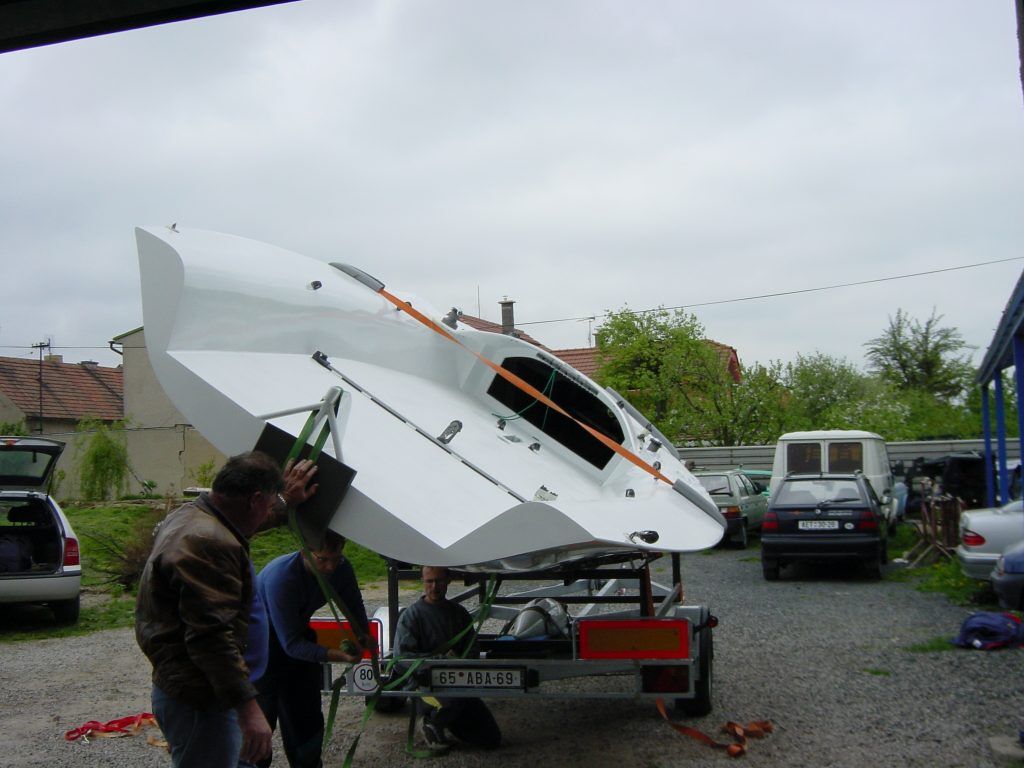

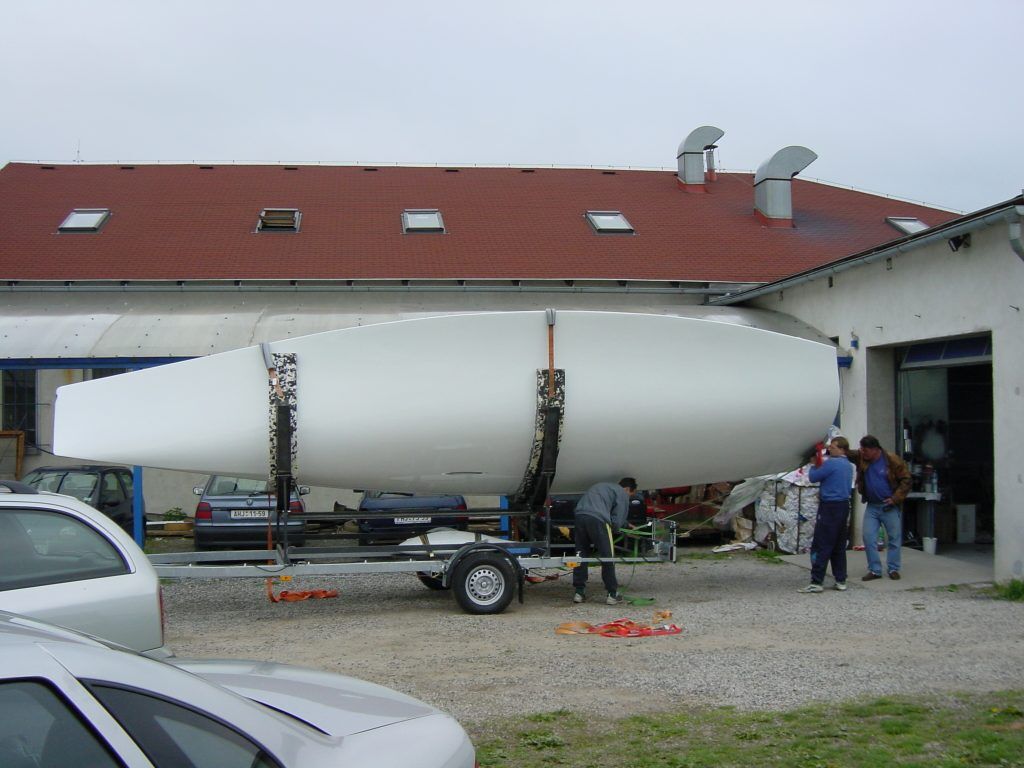

Trailer and launching – The boat can be trailer
launched using the custom keel winch or dry sailed with
the central lifting hook.
Build
your own T830
This design is available to build yourself or by your boatbuilder.
We offer extensive drawings and build
methodology with full size templates and advice throughout the
construction and tuning process.
Find out more about building
your own boat.
Documentation
for the T830
Components
Available
Construction Drawings with full size patterns
(.pdf & .dxf)
Mast and rigging

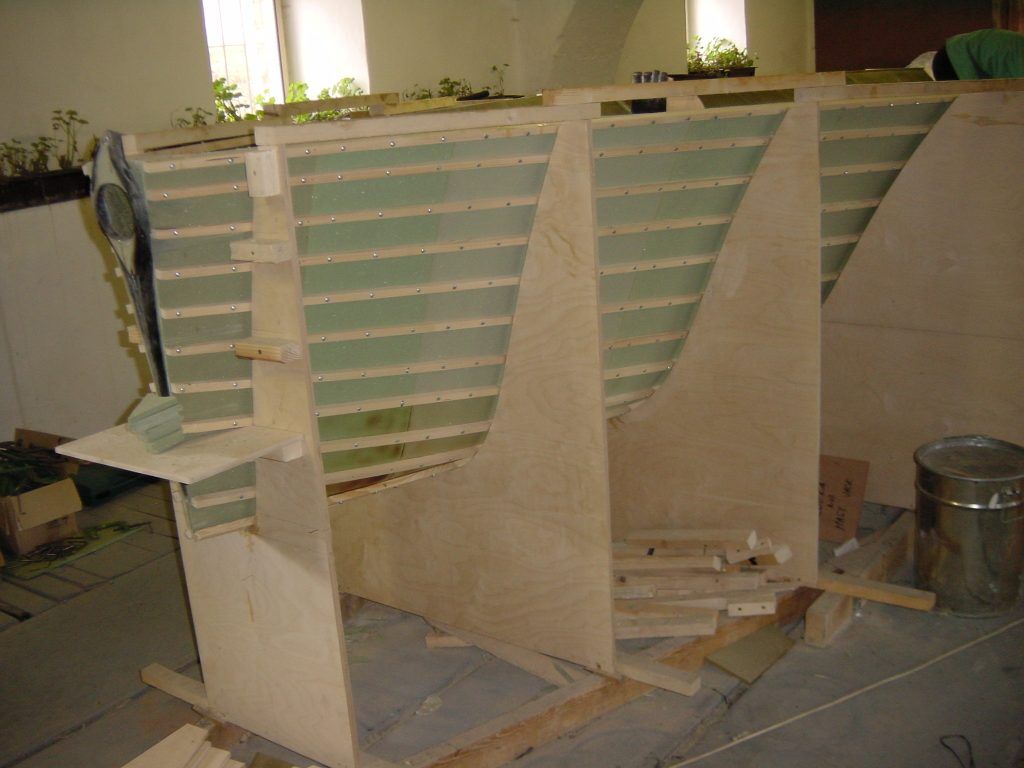

Full size patterns for temporary moulds
(.dxf)
Construction materials
Building Methodology
Deck gear
Construction specification
Sail package
Parts list
Foils
Email support
World wide supply
We are happy to ship drawings and components anywhere in the world.
We offer a set of study prints
for this boat to help you assess the cost and buildabilty of this
boat The study prints contain the material list, build methodology
and component list for the boat.
We also provide the cost of the components required for supply
by us.
There is a charge for the study prints (250NZD), however the cost
is deducted from the drawing price (4800NZD) when the purchase
is made.
How to obtain the drawings or study
prints Simply click on the link below and fill our your
details with you request and we will email you with the information
you need to obtain the study prints or drawings.
